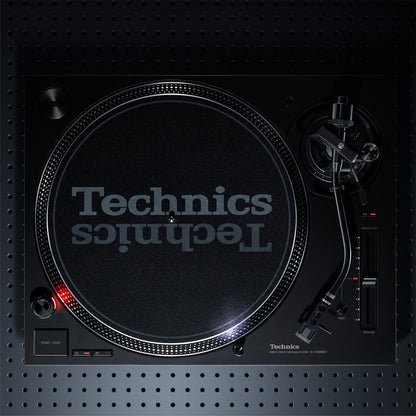

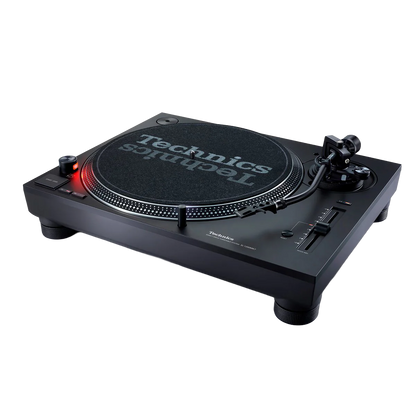

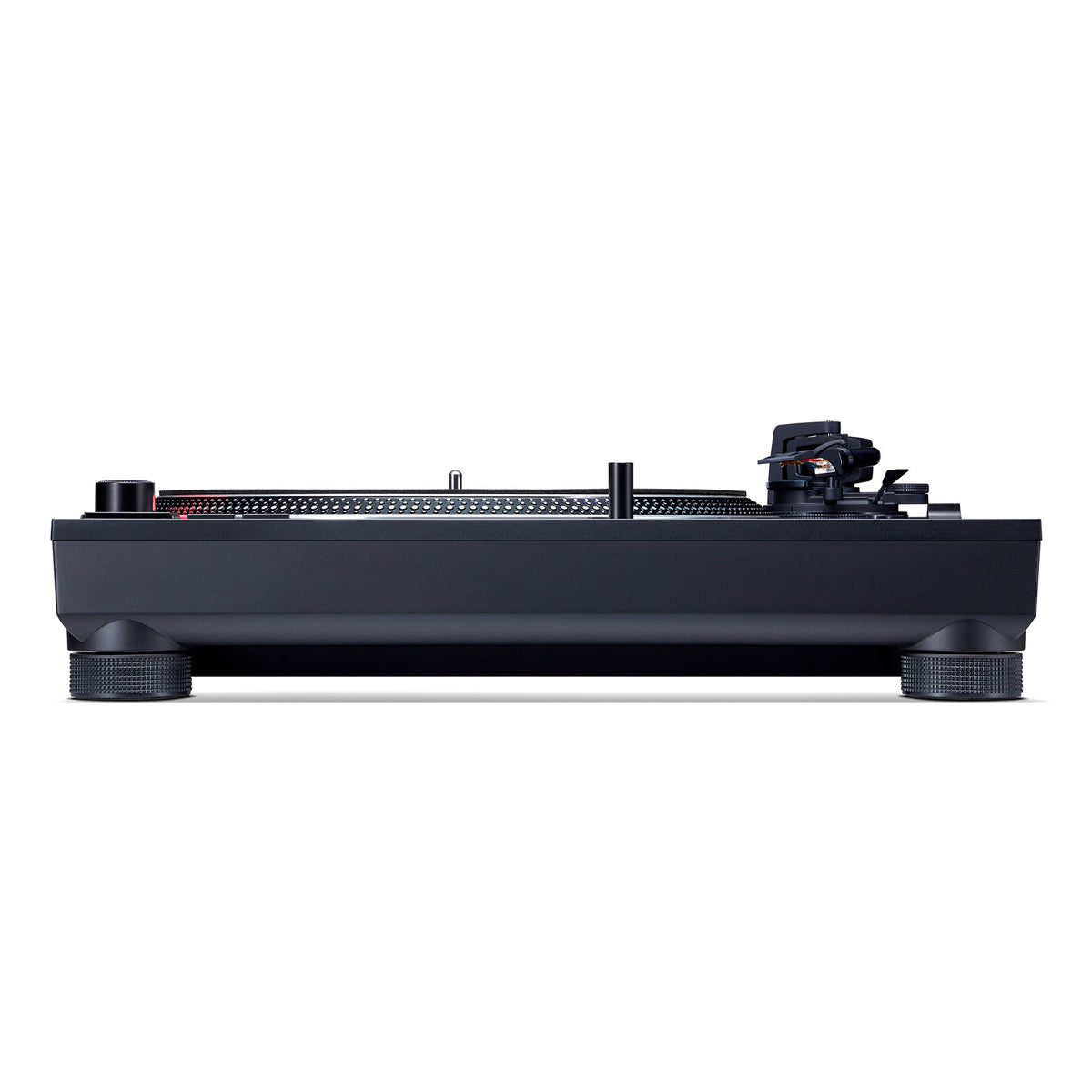

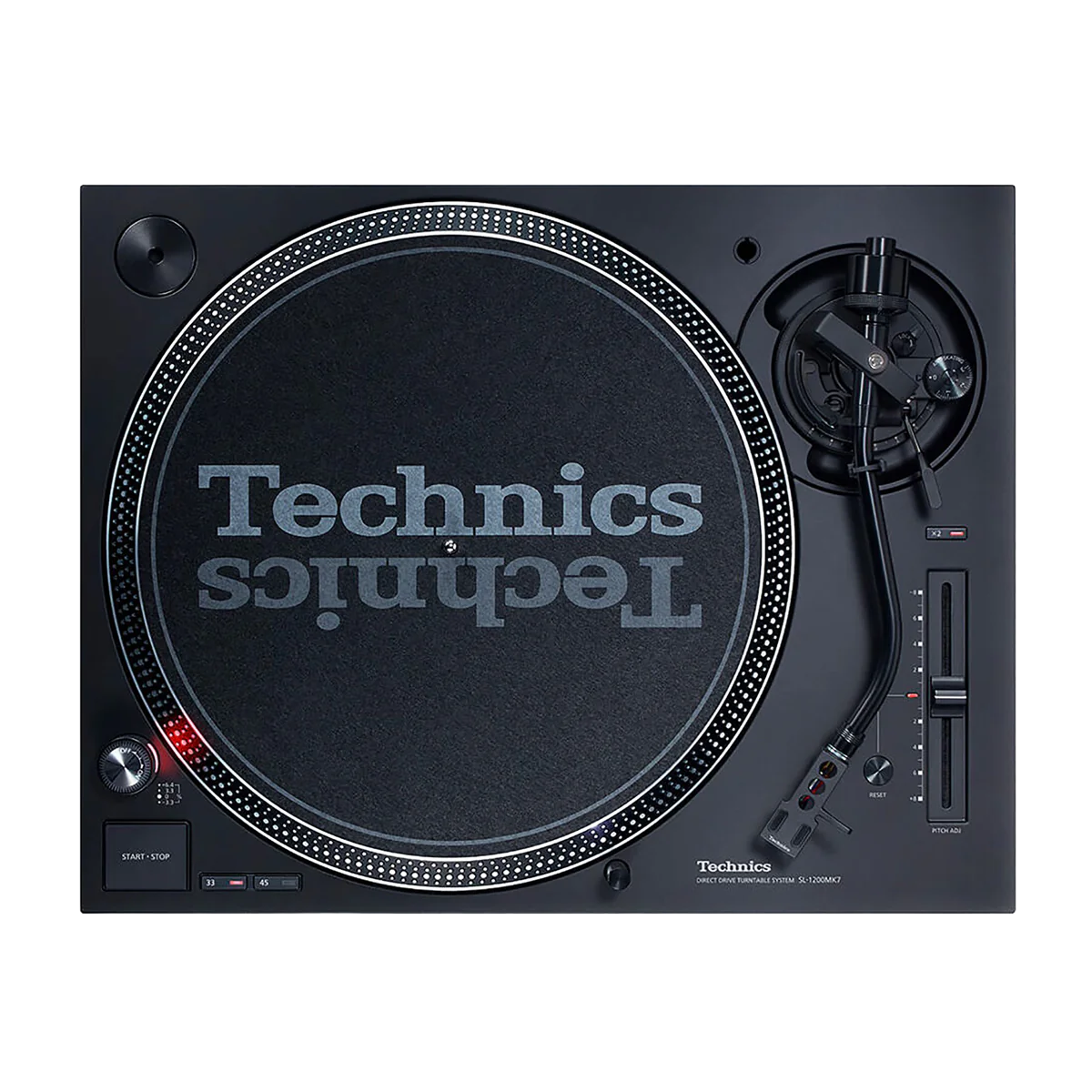

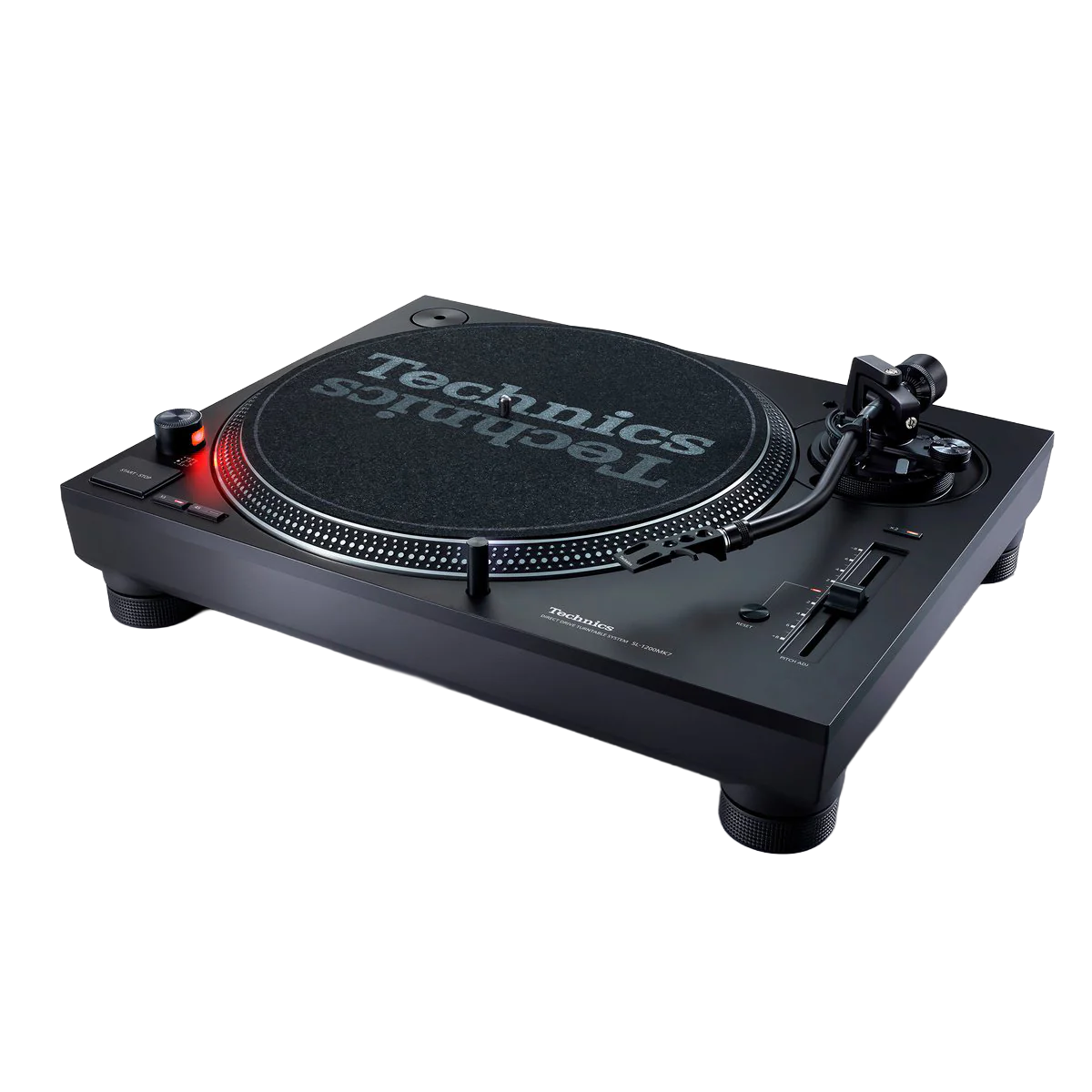

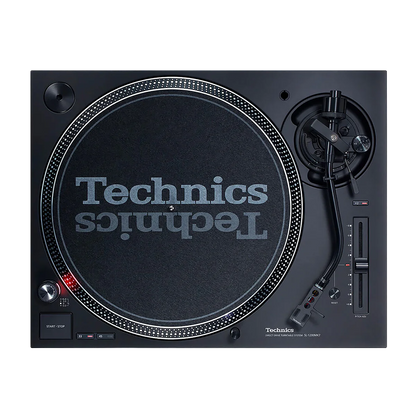

TECHNICS SL-1200 MK7 Direct Drive Turntable

"The return of the worldwide standard in turntables"

Torque / Brake Speed Adjustment

The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

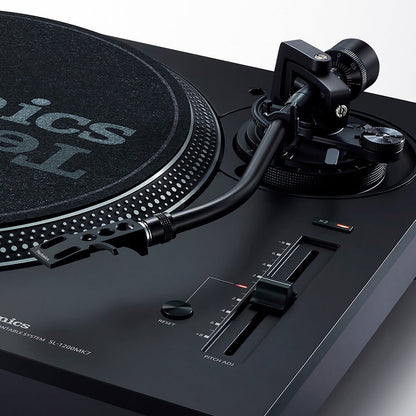

The Pitch Control Function

The pitch control function allows fine adjustment of the rotation speed within ±8 % / ±16 %. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.

Reverse Play Function

The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1200 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.

*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

Turntable section

Type: Direct Drive Manual Turntable

Turntable Speeds: 33-1/3, 45 rpm (with switch 78 rpm)

Starting Torque: 0.18 N・m / 1.8 kg･cm

Build-up Characteristics: 0.7 s. from standstill to 33 1/3 rpm

Wow And Flutter: 0.025 %　W.R.M.S.

Turntable Platter: Aluminium diecast
Diameter: 332 mm (13-5/64 inch)
Weight: Approx. 1.8 kg (4.0 lbs)
(including slipmat and slipsheet)

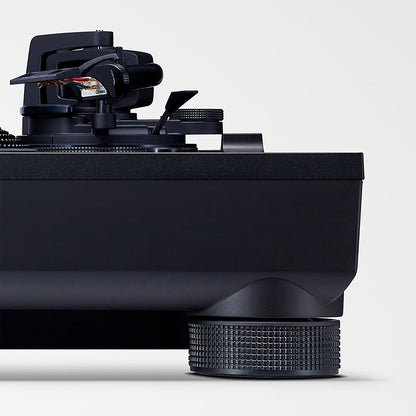

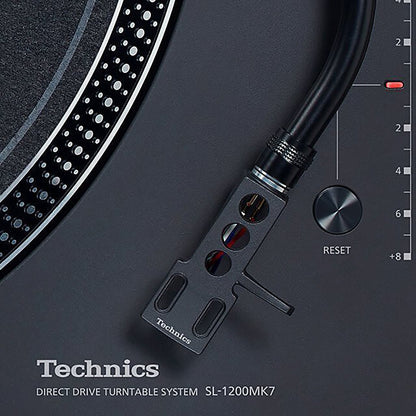

Tonearm Section

Type: Universal Static Balance

Effective Length: 230 mm (9-1/16")

Overhang: 15 mm (19/32")

Tracking Error Angle: Within 2° 32’ (at the outer groove of 30 cm (12") record)
Within 0° 32’ (at the inner groove of 30 cm (12") record)

Offset Angle: 22°

Arm-height Adjustment Range: 0 - 6 mm

Stylus Pressure Adjustment Range: 0 - 4 g (Direct Reading)

Head Shell Weight: Approx. 7.6 g

Applicable Cartridge Weight Range: (without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)

Head Shell Terminal Lug: 1.2 mmφ 4-pin terminal lug

Terminals

Audio Output: PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

General

Power Supply: AC 110-240 V, 60 Hz

Power Consumption: 8 W
Approx. 0.2 W (Standby)

Dimensions (W x H x D): 453 x 169 x 353 mm
17-27/32 × 6-21/32 × 13-29/32 inch

Weight: Approx. 9.6 kg / 21.2 lbs

Accessories: Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
